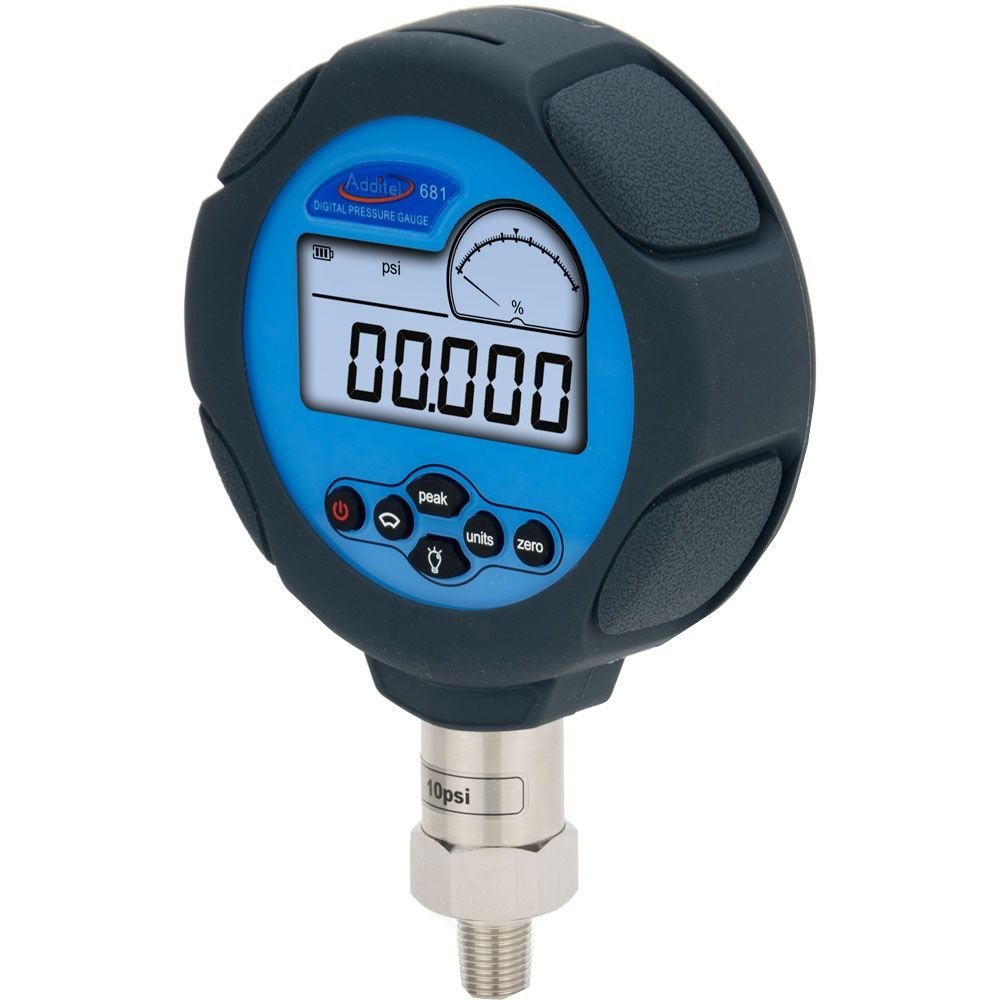

Additel ADT681-05-GP15K-PSI-B Digital Pressure Gauge

Overview Additel ADT681-05-GP15K-PSI-B Digital Pressure Gauge

Additel ADT681-05-GP15K-PSI-B Digital Pressure Gauge is a digital pressure gauge from Additel. It is intended for pressure measurement, calibration, and maintenance work in process and instrumentation settings. The source data also references NIST, ATEX, CSA for this configuration.

Features and Performance

With advanced microprocessor technology and state-of-the-art silicon pressure sensors, the 681 series digital pressure gauges provide an accurate, reliable, and economic solution for a wide range of pressure applications. They are loaded with functionality and remarkably easy to use. To reach the best performance, every silicon pressure sensor in our gauges is specially aged, tested and screened before assembly. At Additel, fully temperature compensated accuracy means every sensor is pressure tested at several environmental temperatures from -10°C to 50°C. With this test data individual coefficients are generated and stored in the gauge characterizing its performance over the full temperature compensated range. And now the ADT681IS comes with an IP67 rating meaning it is dust resistant and water proof, submerible in 1 meter of water.

• 0.05% of full scale accuracy
• 0 to 15K PSI
• range by psi
• Pressure port type: 1/4BSP male
• IP67 rated: Submersible in 1 meter of water (681IS)
• Fully temperature compensated accuracy from 14°F to 122°F (-10°C to 50°C)
• Up to eleven selectable pressure units
• Large, easy to read display with 5-digit resolution
• Backlit display
• % pressure indication with fan-shaped graph scale for visual reference
• Display flash warning when pressure over 120% of FS
• Bottom mount or panel mount
• ATEX and CSA US certified intrinsically safe (Model 681IS)
• NIST traceable calibration with data(included)
• 9V battery power or AC adapter (optional)
• Data logging to 21,843 records (includes date, time, pressure and temperature)

Why Choose This Product

It fits workflows that need a dedicated pressure reading instrument with the function set described in the product data. The configuration is better suited to routine test, verification, or maintenance work than to a generic accessory listing.
