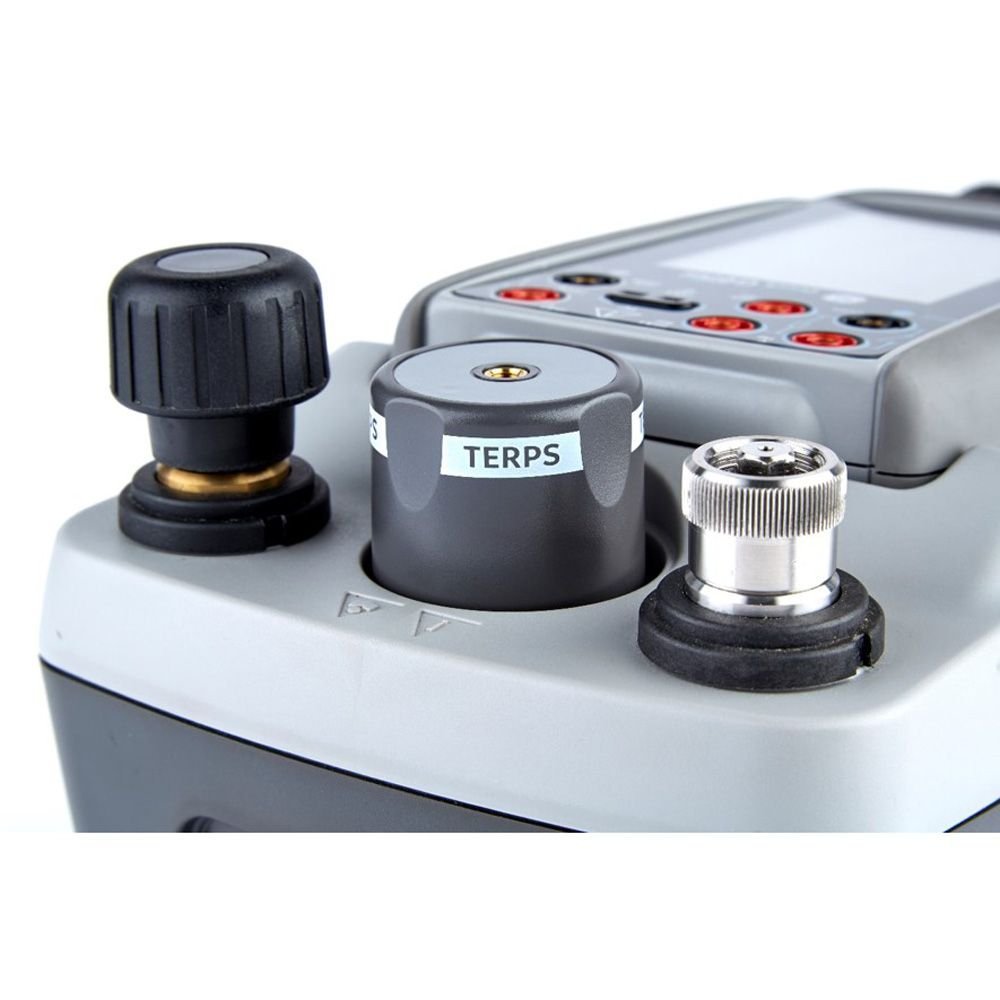

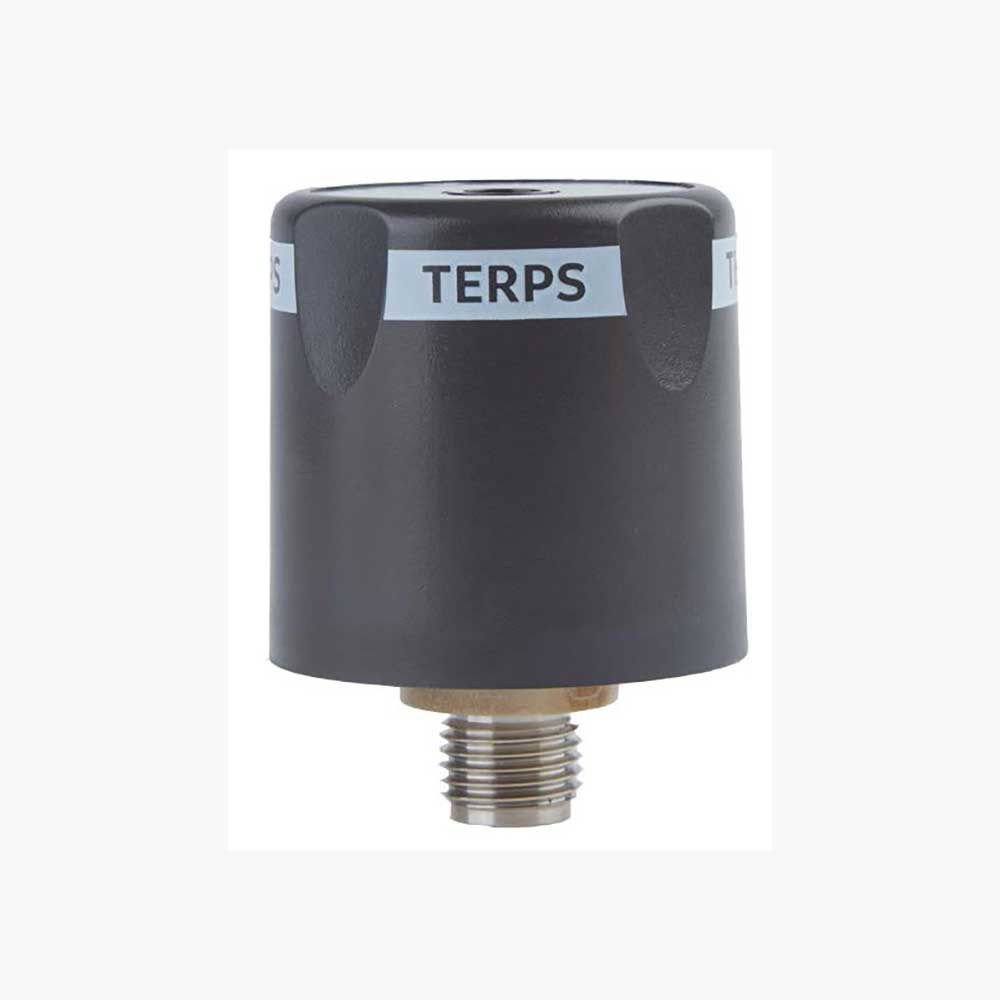

Druck PM620T-10A TERPS Pressure Module
$1,640.00
Druck PM620T-10A TERPS Pressure Module is a TERPS pressure module with 0 to 100 psi absolute. It is designed for use with compatible Druck pressure calibrators and interchangeable pressure ranging.
Description
Overview Druck PM620T-10A TERPS Pressure Module
Druck PM620T-10A TERPS Pressure Module is a TERPS pressure module with 0 to 100 psi absolute.
It is designed for use with compatible Druck pressure calibrators and supports interchangeable pressure ranging without tool-based setup.
Features and Performance
- Total uncertainty from 0.0125% FS
- Temperature compensated accuracy from -10°C to 50°C (-14°F to 122°F)
- Simple screw fit – hand tight no tools required
- Ranges from 1.2 bar to 100 bar (17.5 psi to 1500 psi)

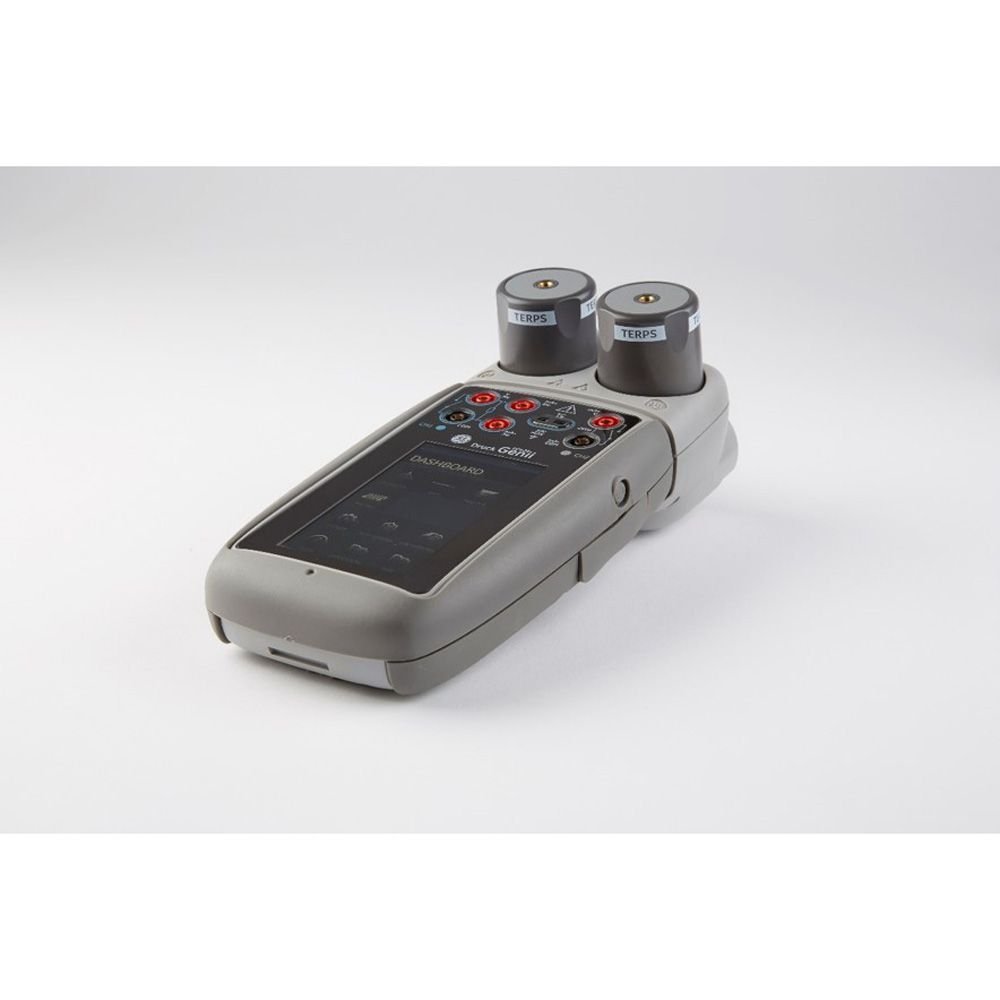

- Compatibility with pressure calibrators such as DPI612 and DPI620G/DPI620G-IS series
- Safe and Hazardous area versions available
- Fully interchangeable with no need for set-up or calibration
Why Choose This Product
The PM620T platform fits calibration workflows that need interchangeable pressure modules, stable measurement performance, and compatibility with DPI612 or DPI620G / DPI620G-IS platforms.
Its TERPS sensor platform is intended for applications that value long-term stability and portable field use.
Product Specifications
| Pressure range | 0 to 100 psi absolute |
|---|---|
| Total uncertainty | 0.0125% FS |
| Compatibility | DPI612 and DPI620G/DPI620G-IS series |
