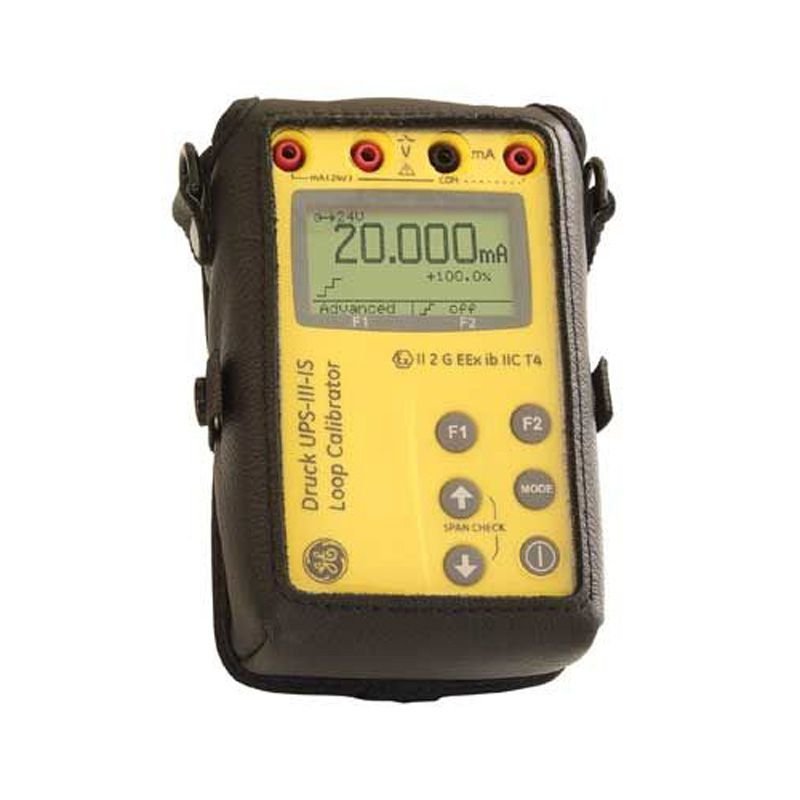

Druck UPS-III-IS Intrinsically Safe Loop Calibrator

Overview Druck UPS-III-IS Intrinsically Safe Loop Calibrator

Druck UPS-III-IS Intrinsically Safe Loop Calibrator is an intrinsically safe loop calibrator from Druck. It supports maintenance and calibration workflows for loop, signal, or transmitter applications based on the functions listed in the source data. The source data also references ATEX, IEC for this configuration.

Features and Performance

Certified for use in hazardous areas, ATEX: II 2G Ex ib IIC T4 (-10°C<Ta< 40°C), Certificate number BASEEFA 06ATEX0224X, IEC: Ex ib IIC T4 (-10°C<Ta< 40°C), Certificate number IECEx BAS 06.0053X

• ATEX/IEC intrinsically safe
• Measure or source 0 to 24 m A
• Accuracy 0.015% of reading
• Dual m A and % readout, linear or flow
• Step, span check, valve check, ramp
• 50 VDC measurement and continuity
• HART® compatible
• Dimensions (w x h x d) – 3.5 in x 5.5 in x 1.7 in (90 mm x 140 mm x 42 mm)
• Weight – 16.2 oz (460 g) including batteries and leather case
• Display – Graphic LCD, 1.2 in x 2.1 in (31 mm x 54 mm)

Each Unit Includes

• Leather case
• Carry strap
• Certificate of calibration
• User guide
• Test leads
• Alkaline batteries

Why Choose This Product

It suits maintenance workflows that depend on the listed source, measure, or loop functions. The product data makes it easier to judge fit by function rather than by generic marketing language.
