Everlast Typhoon 230 AC DC TIG Welder
$1,499.00
The Everlast Typhoon 230 AC DC TIG Welder is a professional-grade TIG and stick welder designed for precision aluminum and steel welding, featuring advanced waveform control and a high-duty cycle inverter design.
Overview Everlast Typhoon 230 AC DC TIG Welder
The Everlast Typhoon 230 AC DC TIG Welder is a next-generation welding machine built for professionals who demand maximum control, arc stability, and consistency across aluminum, steel, and specialty metals. Engineered with advanced AC and DC waveform technologies, this welder delivers exceptional puddle control and extended tungsten life in both shop and field environments.
With a true 70% duty cycle at maximum output and intuitive single-screen operation, the Typhoon 230 sets a new benchmark for precision TIG and stick welding performance.
Features and Performance
- Advanced AC/DC TIG Capability supports precise welding on aluminum, stainless steel, and mild steel
- Five AC Waveforms including Advanced Square, Soft Square, Sine, Triangle, and Trapezoidal for superior bead control on aluminum
- Split AC Waveform Control allows independent adjustment of EN and EP amplitude to optimize penetration and cleaning action
- High-Frequency and Solid-State TIG Starting ensures reliable arc ignition and consistent starts
- DC Pulse Control up to 999.9 Hz and AC pulse up to 400 Hz for refined heat input control
- True Low-Amp Starts down to 2A DC and 3A AC, ideal for thin materials and detailed work

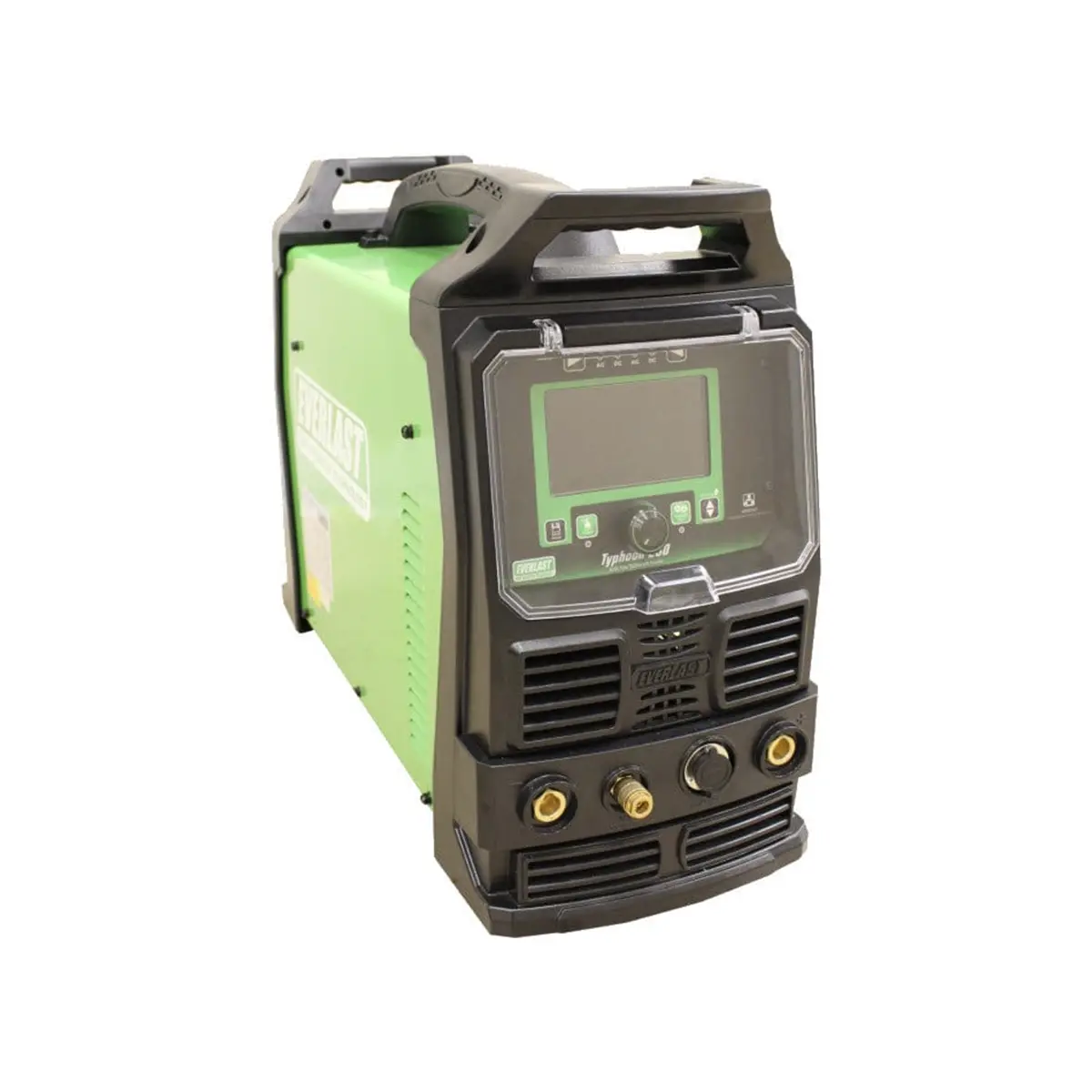

- Large 5.1-inch HD LCD Display presents all settings clearly on a single screen without hidden menus
- Expanded Memory System stores up to 30 programs with lockout capability for multi-user environments

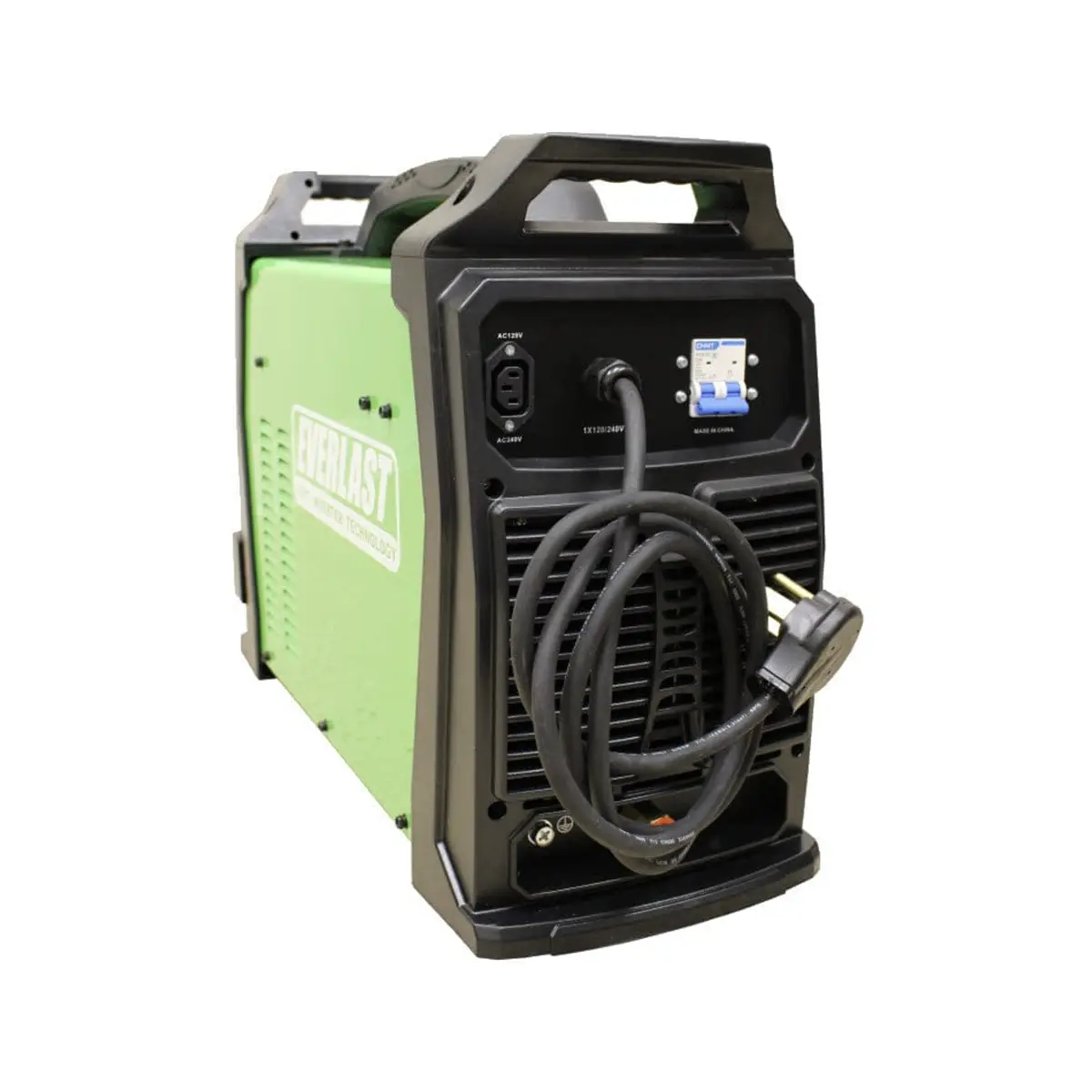

- Dual-Voltage Operation (120V / 240V) increases flexibility for jobsite and shop use
- High-Performance Stick Welding with AC/DC output, arc force, and hot start for E6010 and E7018 electrodes
Why You Should Buy it
- Designed for professional TIG welders and advanced fabrication work
- Outstanding aluminum welding control without sacrificing productivity
- Ideal for aerospace, marine, motorsports, and industrial fabrication
- High duty cycle supports extended welding sessions without downtime
- Backed by an industry-leading five-year parts and labor warranty
| Specification | Details |
|---|---|
| Welding Processes | AC/DC TIG (GTAW), Stick (SMAW) |
| Input Power | 120V / 240V Single Phase |
| Maximum TIG Output | Up to 230 Amps |
| Duty Cycle | 70% at Max Output |
| Steel TIG Capacity | 0.004 – 5/16 in (240V) |
| Aluminum TIG Capacity | 0.005 – 5/16 in (240V) |
| Stick Output | Up to 200 Amps |
| AC Waveforms | Advanced Square, Soft Square, Sine, Triangle, Trapezoidal |
| Pulse Frequency | DC up to 999.9 Hz / AC up to 400 Hz |
| Display | 5.1-inch HD LCD |
| Memory Programs | Up to 30 |
| Warranty | 5-Year Parts and Labor Warranty |

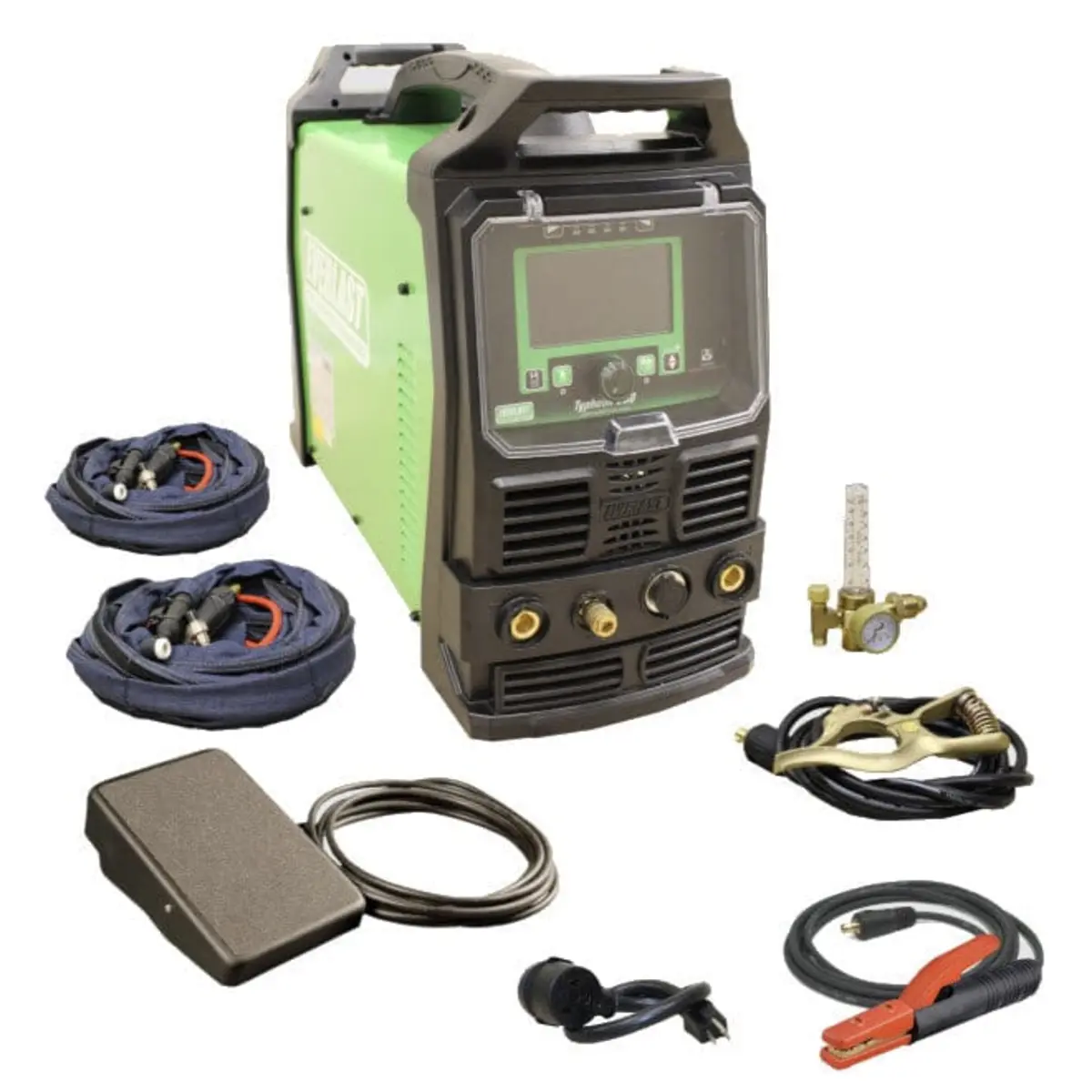

- Typhoon 230 Power Source
- Wired Foot Pedal (25 ft)
- 9 Series Air-Cooled TIG Torch (12.5 ft)
- 20 Series Water-Cooled Flex Head TIG Torch (12.5 ft)
- Two Torch Switches for 2T/4T Use
- 250A Stick Electrode Holder with 10 ft Cable
- 400A Bronze Work Clamp with 10 ft Cable
- Two TIG Consumable Starter Kits
- 240V to 120V Pigtail Adapter
- Argon Regulator with Hose
