Miller Multimatic 235 Multiprocess Welder
$2,112.00
The Miller Multimatic 235 Multiprocess Welder is a professional 240V inverter welder designed for MIG, flux-cored, Stick, and DC TIG welding with fast setup and reliable performance.
Overview Miller Multimatic 235 Multiprocess Welder
The Miller Multimatic 235 Multiprocess Welder is a versatile, professional-grade welding solution built to support MIG, flux-cored, Stick, and DC TIG welding in one efficient machine. Designed for fabricators and welders of all experience levels, it combines intuitive controls with strong inverter performance to deliver consistent results across steel, stainless steel, and aluminum.
With a clear color LCD display and Auto-Set technology, the Multimatic 235 minimizes setup time and maximizes arc-on time—making it an excellent choice for fabrication shops, jobsite work, and growing welding operations.
Features and Performance
- True multiprocess capability: MIG, flux-cored, Stick, DC Lift-Arc TIG, and DC pulsed TIG

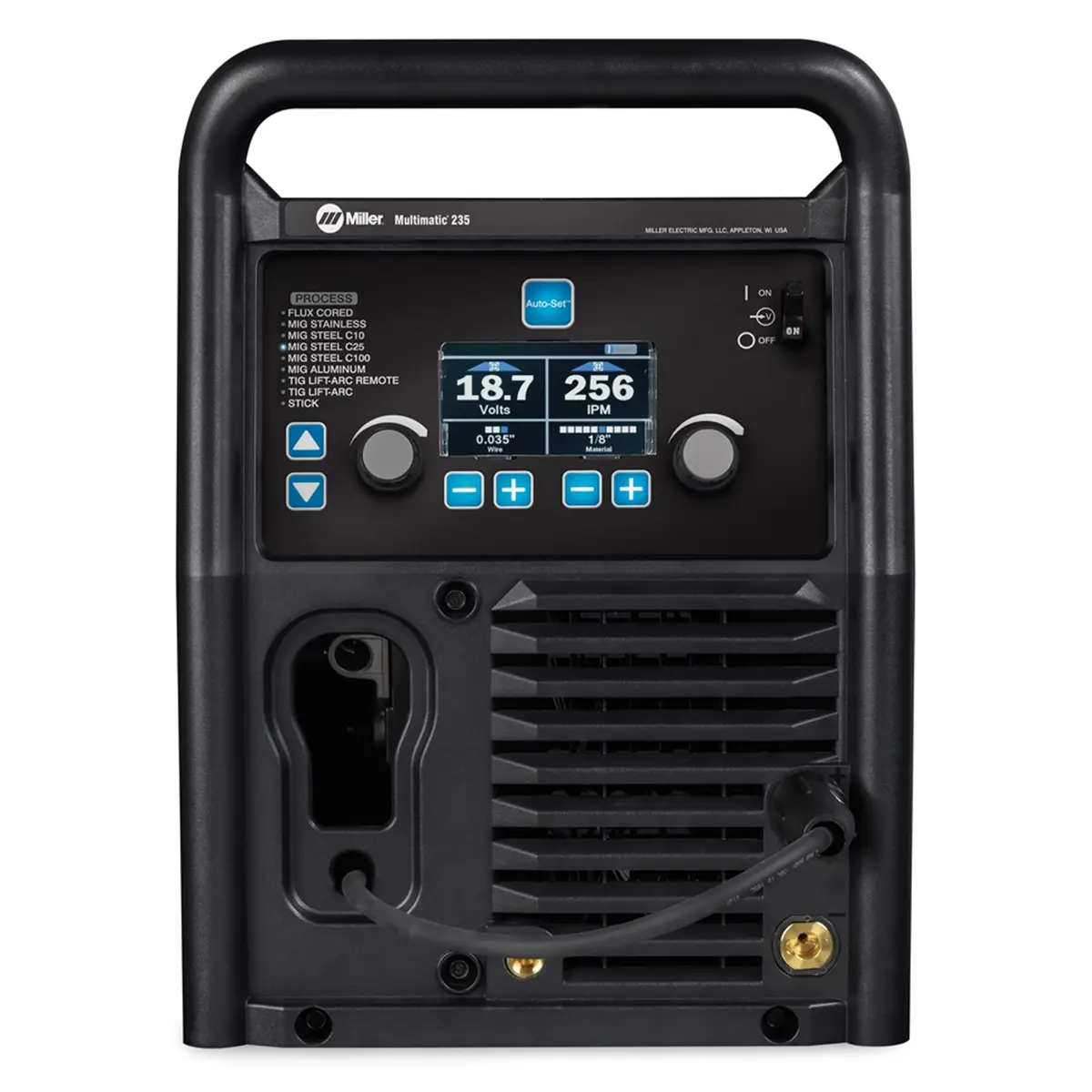

- 4.3-inch color LCD display provides guided setup and clear parameter selection
- Auto-Set technology automatically selects recommended settings for faster setup
- Inverter-based design delivers smooth, stable arc characteristics across processes
- Gun-On-Demand technology automatically detects and recalls settings for active MIG or spool guns
- MDX-250 MIG gun with AccuLock MDX consumables improves wire feeding and arc stability
- DC pulsed TIG capability enhances control on thinner materials
- Generator compatible for mobile and remote welding applications
- Optional EZ-Latch running gear improves portability without lift equipment
This machine is ideal for users looking for a professional multiprocess welder for fabrication and aluminum welding.
Why You Should Buy it
- One machine handles multiple welding processes without compromise
- Designed for fabrication shops, mobile welders, and industrial applications
- Easy-to-use interface supports both new and experienced operators
- Strong output and duty cycle support continuous professional use
- Portable design reduces the need for multiple machines
- Backed by a 3-year manufacturer warranty for long-term confidence
If you need a 240V multiprocess welder with TIG capability and shop-grade performance, the Multimatic 235 is built to grow with your skills and workload.
| Specification | Details |
|---|---|
| Input Voltage | 208 / 220–240 V |
| Input Phase | Single Phase |
| Frequency | 50 / 60 Hz |
| Welding Processes | MIG, Flux-Cored, Stick, DC TIG |
| Amperage Range | 20 A – 235 A |
| Rated Output | MIG: 170 A @ 22.5 V (60%) / Stick: 150 A @ 26 V (60%) / TIG: 180 A @ 17.2 V (60%) |
| Weldable Metals | Steel, Stainless Steel, Aluminum |
| Current Type | DC |
| Weld Output Type | CC / CV |
| Wire Feed Speed | 60 – 600 IPM |
| Portability | Handle, optional running gear |
| Warranty | 3 Years |

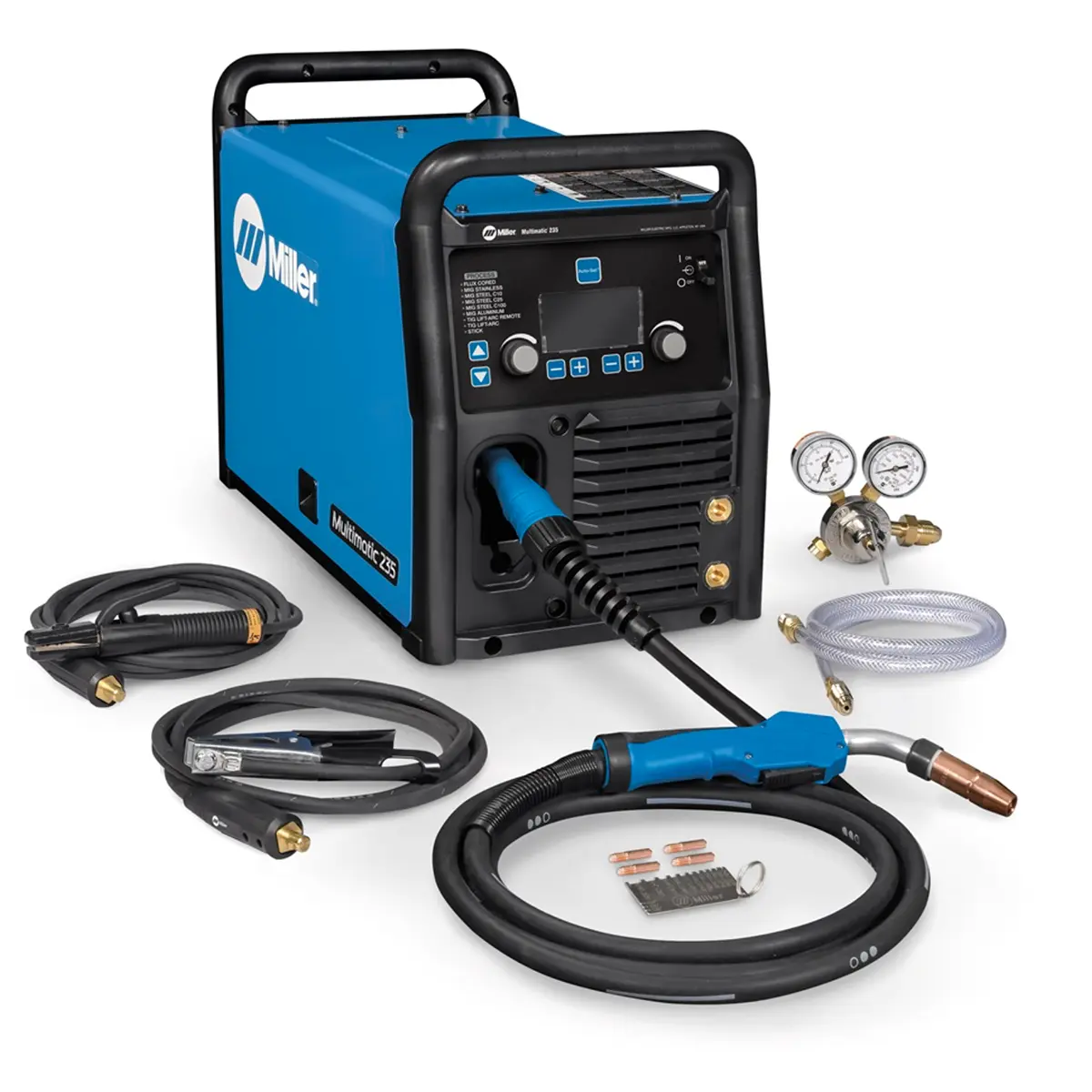

- Multimatic 235 welding power source
- MDX-250 MIG gun with consumables
- Stick electrode holder and cable
- Work clamp and cable
- Gas regulator and hose
- Drive rolls
- Extra contact tips
- Material thickness gauge
