PIE 830 Multifunction Diagnostic Calibrator
$2,447.00
The PIE 830 is a high-accuracy multifunction diagnostic calibrator with dual display, advanced loop diagnostics, RTD/TC support, and frequency measurement up to 20 kHz.
Overview PIE 830 Multifunction Diagnostic Calibrator
The PIE 830 Multifunction Diagnostic Calibrator goes far beyond traditional process calibration. In addition to sourcing and measuring common process signals, it functions as a loop detective, capable of identifying hidden problems such as ground faults, moisture intrusion, corrosion bridges, and current leakage —issues that standard calibrators and multimeters often miss.
With a dual display, built-in Loop Diagnostic technology, and LoopScope™, the PIE 830 allows technicians to see the full health of a live loop in real time. This prevents unnecessary transmitter replacement and dramatically reduces troubleshooting time in the field or plant.
Features and Performance
- Dual Display for Faster Diagnostics
Simultaneously view multiple parameters for clear, real-time troubleshooting. - Advanced Loop Diagnostic Technology
Detects uncontrolled current caused by ground faults, moisture, or corrosion—problems invisible to standard test tools. - LoopScope™ Functionality
Displays current, voltage, and resistance at the same time, providing instant insight into loop loading, wiring, and power supply issues. - RTD Auto-Detection (2, 3, or 4 Wire)
Automatically identifies RTD wiring configuration and detects broken or disconnected sensor leads. - Universal Transmitter Simulation
Configure the 830 as an isolated transmitter for temperature, millivolt, frequency, or pressure to determine whether the transmitter or control system is at fault. Comprehensive Signal Calibration
- mA, DC volts, resistance
- Thermocouples and RTDs
- Frequency up to 20.000 kHz / 2000 CPM

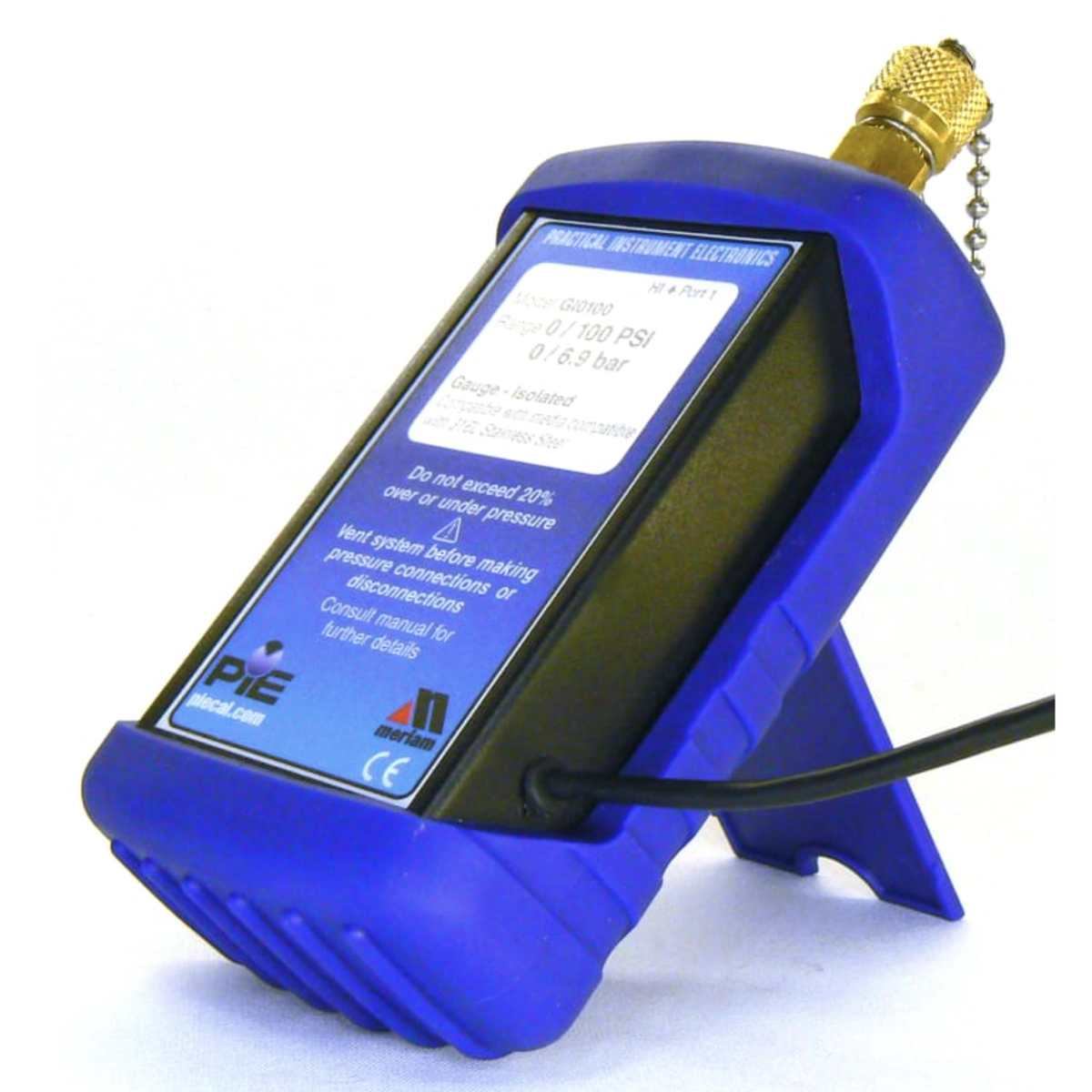

- Pressure Measurement Capability
Supports optional pressure modules with up to 32 gauge, differential, absolute, and compound pressure modules. - Backlit Graphical Display
Easy to read in dark or confined plant environments. - Built-in Continuity Tester
Quickly locate wiring faults, shorts, and broken connections without a separate multimeter.
Why You Should Buy it
- Finds hidden loop problems others can’t
- Reduces unnecessary transmitter replacement
- Combines calibration and diagnostics in one tool
- Saves time during commissioning and maintenance
- Includes NIST calibration and 3-year warranty
| Specification | Details |
|---|---|
| Product Type | Multifunction Diagnostic Process Calibrator |
| Display | Dual Display (Graphical) |
| mA Source / Measure | 0.000 – 24.000 mA |
| Voltage Measurement | Up to 60.00 V |
| Loop Voltage | 2 – 60 V |
| Resistance Range | 0 – 4010 Ω |
| Frequency Range | 0.001 Hz – 20.000 kHz |
| Temperature Sensors | RTD & Thermocouple |
| RTD Wiring Detection | Automatic 2 / 3 / 4 Wire |
| Pressure Capability | Optional Pressure Modules |
| Pressure Sensor | Dual Sensor Support |
| Loop Diagnostics | Ground Fault & Leakage Detection |
| Backlight | Yes |
| Calibration Included | Factory + NIST Calibration |
| Power Supply | Battery Powered (AA) |
| Warranty | 3 Years |
- PIE 830 Multifunction Diagnostic Calibrator
- (4) AA Alkaline Batteries
- Blue Rubber Protective Boot

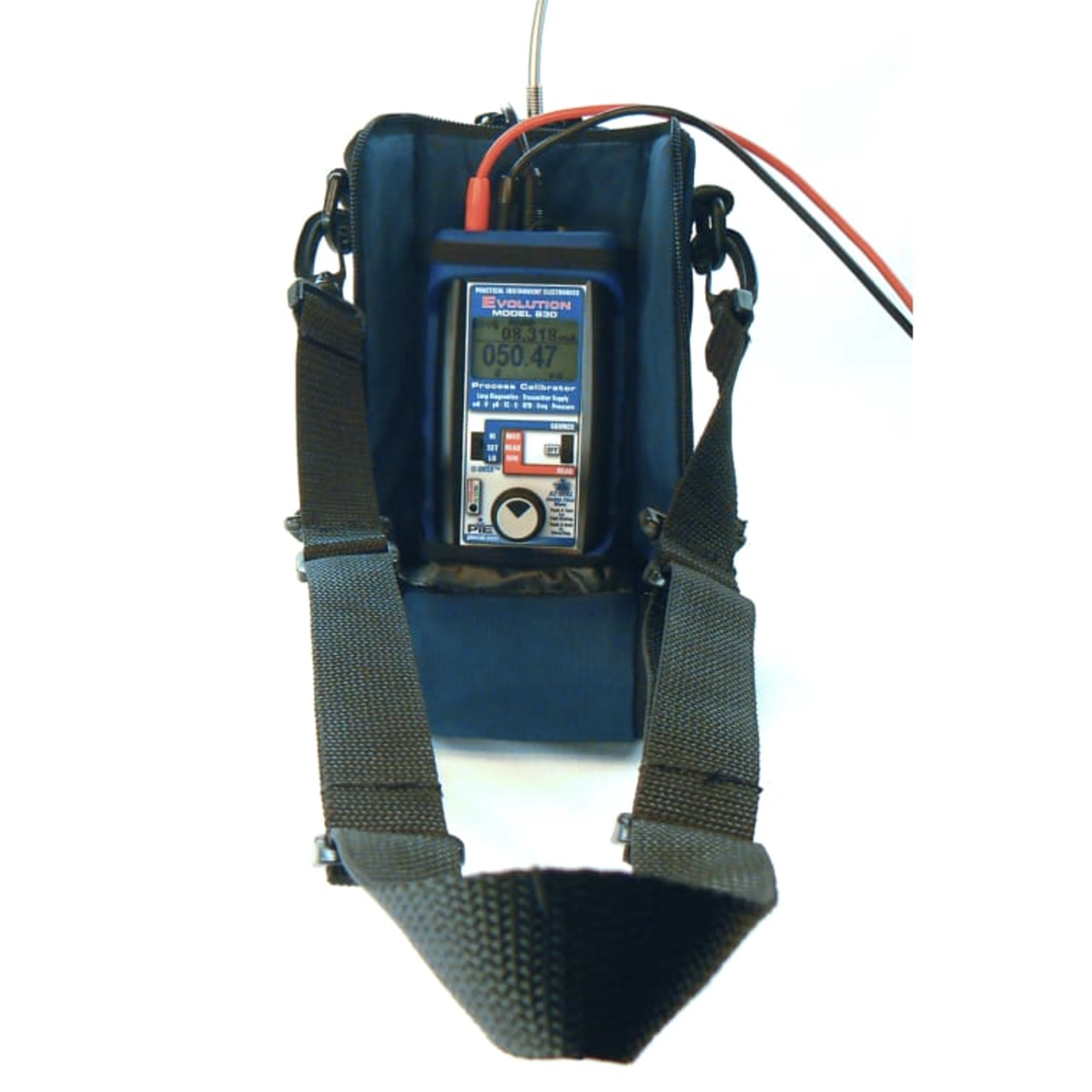

- Evolution Hands-Free Carrying Case
- Evolution mA/V Test Leads (Banana Plug to Alligator Clips)
- Evolution RTD Wire Kit (Banana Plug to Spade Lugs)
- NIST Certificate of Calibration
- 3-Year Warranty
