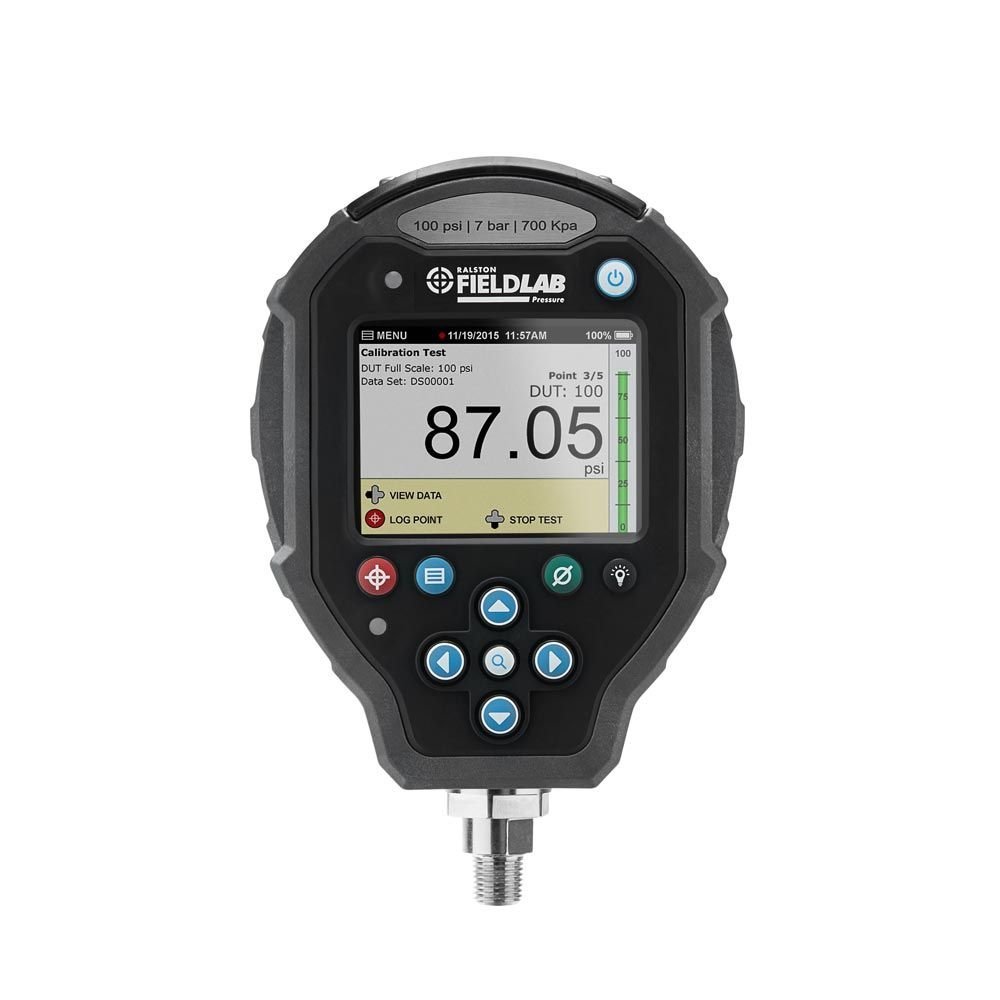

Ralston Instruments FLP1-GV-2M FieldLab Pressure Calibrator

Overview Ralston Instruments FLP1-GV-2M FieldLab Pressure Calibrator

Ralston Instruments FLP1-GV-2M FieldLab Pressure Calibrator is a Ralston FieldLab pressure calibrator designed for field calibration work. It supports pressure calibration work where a defined measurement range is required. Specified range: 10,000psi with accuracy 0.1% of Reading.

Features and Performance

• 10,000 PSI
• Speed through Calibration Tests using Easily Configurable Test Modes that give Users Prompts on what Pressure Test Points to Measure
• Continuous Pressure Testing with up to 2 Million Points Onboard Storage
• Includes Free FieldLab Desktop PC Software for Test Mode Setup, Configuration and Data Set Management (Windows 7 and Higher)
• Rechargeable Battery Life: 2 Months/Single Charge
• Min/Max Feature is Excellent for doing PSV Tests
• Class 1 Division 1 Intrinsically Safe
• ATEX and IECEx Zone 0 and CE Approved
• Accuracy: ±0.1% of Reading from 20%-100% of Full Scale ±0.02% of Full Scale from 0-20% of Full Scale
• ±0.1% of Reading from 20%-100% of Full Scale
• ±0.02% of Full Scale from 0-20% of Full Scale
• Vacuum: ±0.25% of Full Scale (ranges 300 PSI and lower)
• Operating Temperature: -10 to 50 °C (14 to 122 °F)
• Storge Temperature: -40 to 75 °C (-40 to 167 °F)
• LCD Display: 3.5 in / 90 mm Color TFT LCD Display
• Battery: Lithium Ion rechargeable (4.8 Ah Capacity)
• Wetted Material: 316 Stainless Steel
• Ingress Protection: IP67 (1 meter for 30 minutes)
• Data / Communication: USB Type B
• USB Cable: 2 meter (shielded)
• Bottom Connection: 1/4″ Male NPT
• NIST Traceable Calibration Certificate

Why Choose This Product

This model is relevant for pressure test and calibration work where a dedicated handheld instrument is preferred. The listed range supports applications centered on 10,000psi.
