Ralston Instruments QSCM-2FSA-20-2 QSCM Manifold,1/4″FNPT Gauge Adaptor,20ft,2ft Hoses,Bag

Overview Ralston Instruments QSCM-2FSA-20-2 QSCM Manifold,1/4″FNPT Gauge Adaptor,20ft,2ft Hoses,Bag

QSCM Manifold,1/4″FNPT Gauge Adaptor,20ft,2ft Hoses,Bag

Features and Performance

• Fine adjustment piston provides precise pressure control instead of trying to make adjustments with a pressure regulator and a needle valve
• Soft-seated valves make filling and venting the system very precise
• Compact design allows the manifold, gauge adapter and hoses to fit in the included nylon bag
• Low volume Quick-test hose, gauge adapter and process connection reduce gas usage and make nitrogen cylinders last longer
• Each kit comes with the hoses and gauge or pressure calibrator adapter needed so that you can start calibrating within minutes
• Made in U.S.A

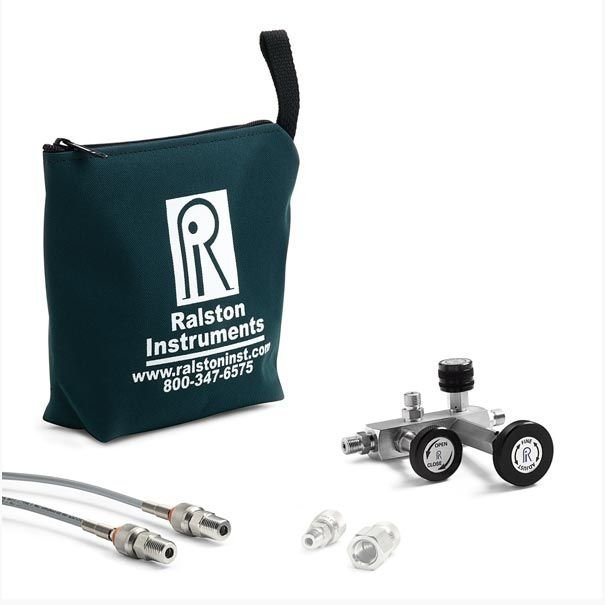

• Assembly – QSCM Assembly (QSCM)
• Gauge Adapter – 1/4″ female NPT x female Quick-test, no check-valve, S.S. (QTHA-2FSA)
• Hose – Quick-test 6900 psi hose, S.S. hose ends, 20 ft (6.10 m) long (QSQS-HOS-20ft)
• Hose – Quick-test 6900 psi hose, S.S. hose ends, 2 ft (61 cm) long (QSQS-HOS-2ft)

Why Choose This Product

The Ralston Instruments QSCM-2FSA-20-2 QSCM Manifold,1/4″FNPT Gauge Adaptor,20ft,2ft Hoses,Bag is a model-specific pressure calibrator for calibration and test work.
