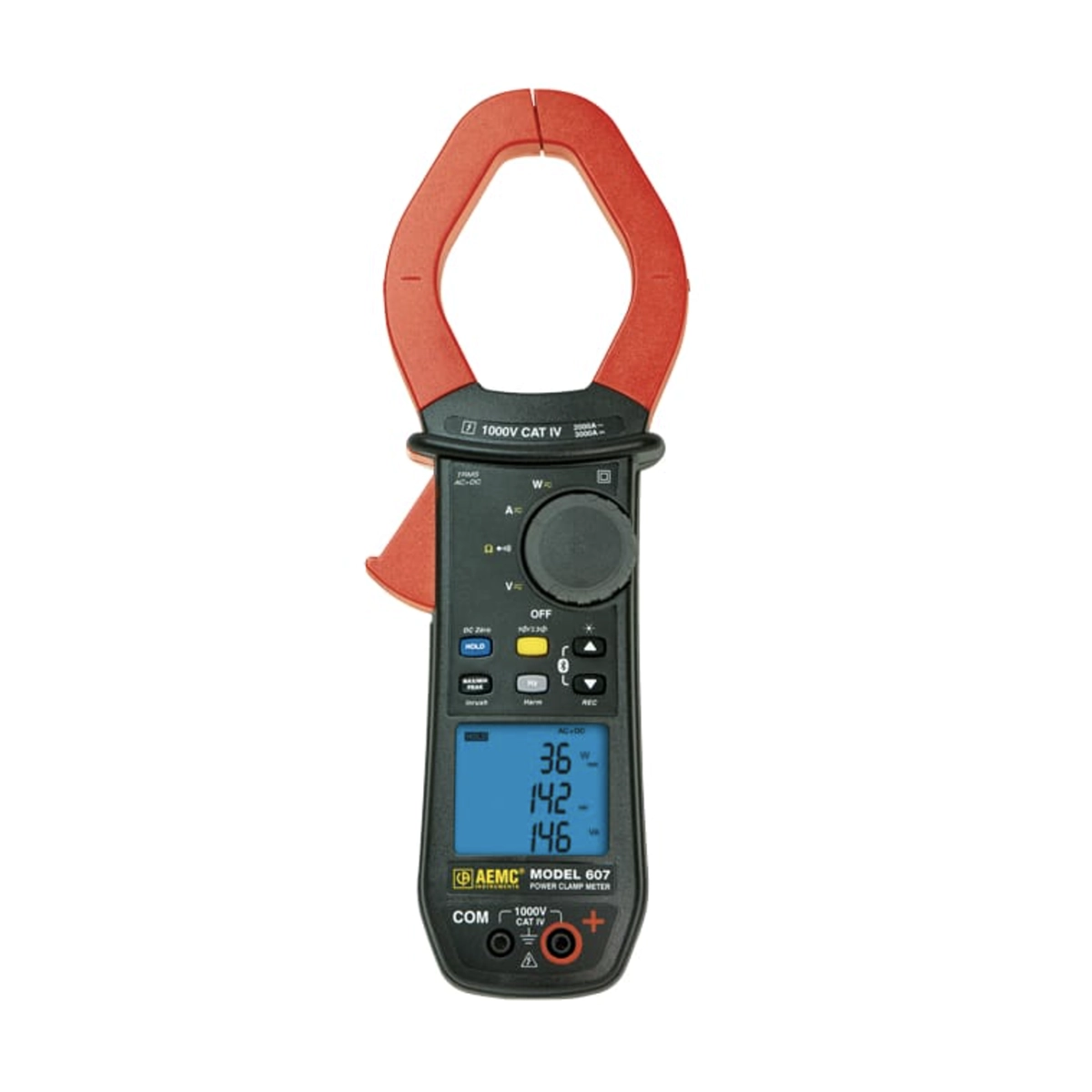

AEMC 607 Clamp Meter

Overview AEMC 607 Clamp Meter

The AEMC 607 Clamp Meter delivers advanced measurement capability combined with the highest safety rating for electrical testing. Manufactured by AEMC Instruments, this True RMS power clamp meter is rated CAT IV 1000 V, making it suitable for use in all electrical environments, including utility, industrial, and commercial installations.

With a 2.36-inch (60 mm) jaw opening, the Model 607 easily accommodates large conductors and bus bars. Its rugged IP54-rated enclosure and ergonomic one-hand operation make it reliable and comfortable to use in harsh jobsite conditions.

Features and Performance

• True RMS measurements for accurate readings on distorted waveforms
• AC, DC, and AC+DC voltage, current, and power measurement
• Voltage measurement up to 1000 V AC/DC
• Current measurement up to 2000 A AC and DC
• Large 10,000-count blue electroluminescent backlit display
• True InRush™ current measurement for motor start-up analysis
• Power and harmonic analysis for advanced diagnostics
• Internal data logging with storage for up to 1000 measurements
• Built-in Bluetooth interface for wireless data transfer
• Rugged IP54 housing for dust and water spray protection
• Ergonomic design for one-handed operation, even with gloves

Why You Should Buy it

The AEMC 607 is ideal for professionals who require maximum safety, high current capability, and advanced power analysis. Its CAT IV 1000V rating, large jaw opening, Bluetooth data logging, and harmonic analysis make it a powerful tool for electricians, maintenance engineers, and power quality specialists working in demanding environments.

Applications

• General-purpose electrical troubleshooting
• Motor start-up and inrush current analysis
• Voltage and power diagnostics
• Bonding and continuity testing
• Phase sequence checking
• Harmonic analysis and power monitoring
• Aircraft and shipboard electrical troubleshooting
