Fluke 369 FC Leakage Current Clamp Meter
$712.00
The Fluke 369 FC Wireless Leakage Current Clamp Meter provides ultra-sensitive leakage current measurement with a large 61 mm jaw, helping identify insulation issues and prevent nuisance RCD or GFCI trips without shutting systems down.
Overview Fluke 369 FC Leakage Current Clamp Meter
The Fluke 369 FC Leakage Current Clamp Meter is engineered for professionals who need accurate detection of very small leakage currents on larger conductors. Part of the Fluke 360 Series by Fluke, the 369 FC enables preventive maintenance by documenting and trending leakage current over time to avoid unplanned downtime.
With 1 microamp resolution and a fully shielded 61 mm jaw, the 369 FC captures small leakage signals while minimizing electromagnetic interference. Wireless connectivity via Fluke Connect allows technicians to record, compare, and analyze measurements remotely.
Features and Performance
- True RMS leakage current measurement with 1 µA resolution
- Measures leakage current up to 60 A AC

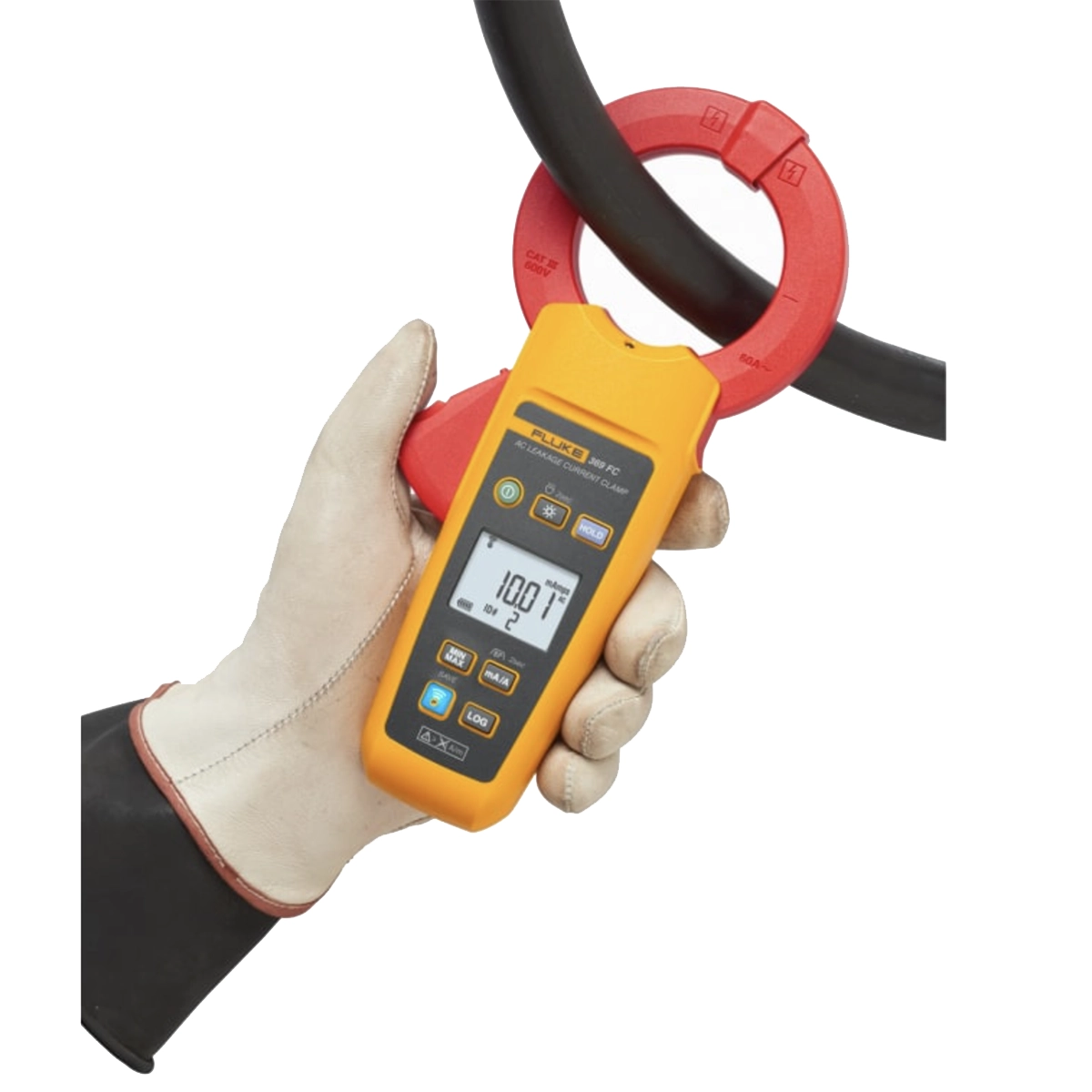

- Oversize 61 mm fully shielded jaw for larger conductors
- Selectable filter to eliminate unwanted noise
- Max, Min, and Average readings with hold function
- Forward-facing LED worklight for dark panels and cabinets

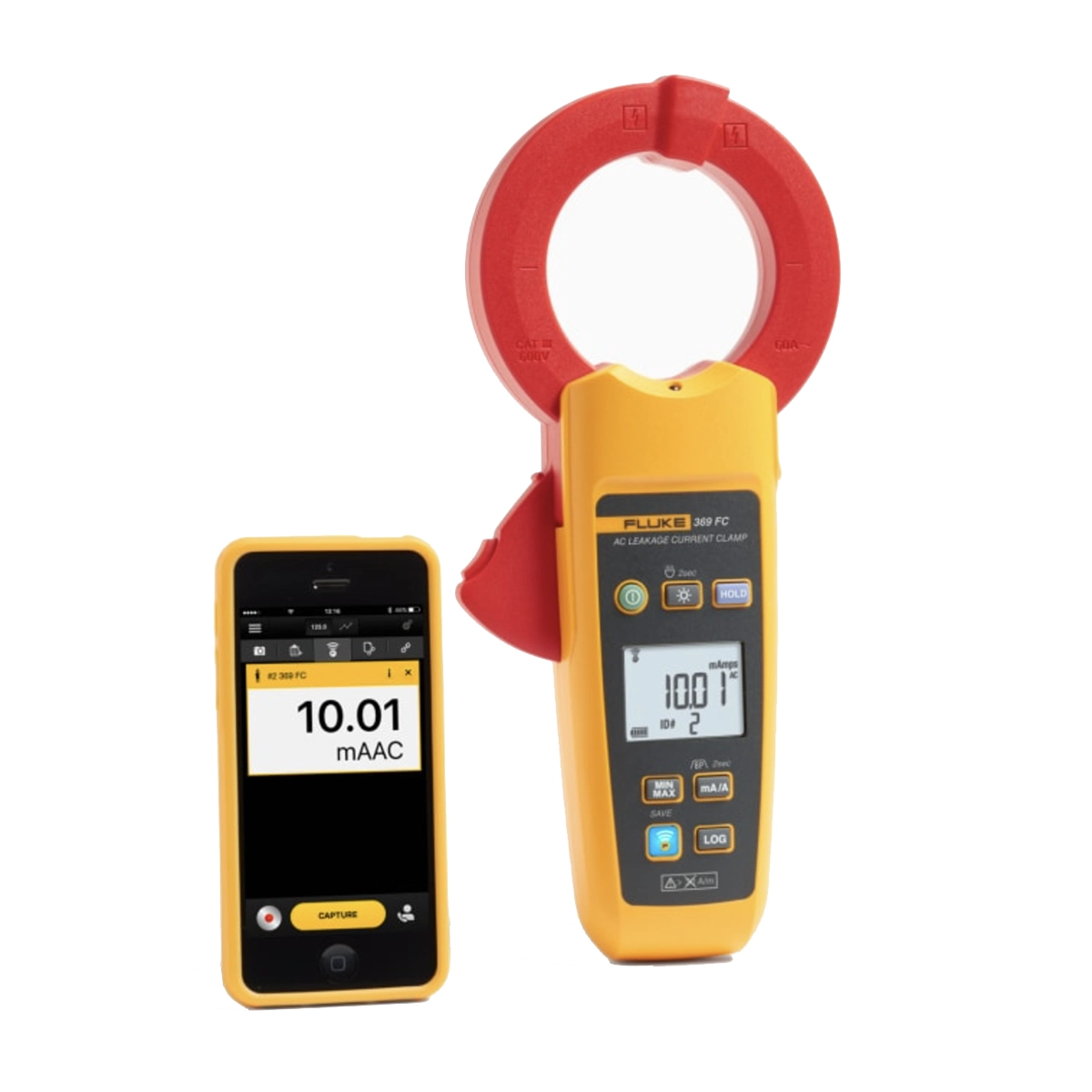

- Wireless data connectivity for logging and trending via Fluke Connect
- Auto and manual range selection for mA and A ranges
- Designed for tracking intermittent RCD and GFCI trips
Why You Should Buy it
The Fluke 369 FC is ideal for electricians, maintenance engineers, and facility teams working with large conductors and complex electrical installations. Its high sensitivity and large jaw opening make it easier to diagnose leakage problems that cause nuisance tripping, while wireless data logging supports condition-based maintenance without interrupting operations.
| Specification | Details |
|---|---|
| Measurement Type | True RMS Leakage Current |
| Resolution | 1 µA |
| Maximum AC Current | 60 A |
| Jaw Opening | 61 mm (2.40 in) |
| Range Selection | Auto / Manual |
| Noise Filter | Selectable |
| Max / Min / Avg | Yes |
| Inrush Current | No |
| Data Logging | Yes |
| Wireless Interface | Fluke Connect |
| IP Rating | IP30 |
| Safety Rating | CAT III 600 V |
| Battery Type | AA |
| Power Supply | Battery powered |
| Product Weight | 600 g (1.32 lb) |
| Dimensions (L × W × H) | 257 × 116 × 46 mm |
| Calibration | Not included |
| Warranty | 1 Year |

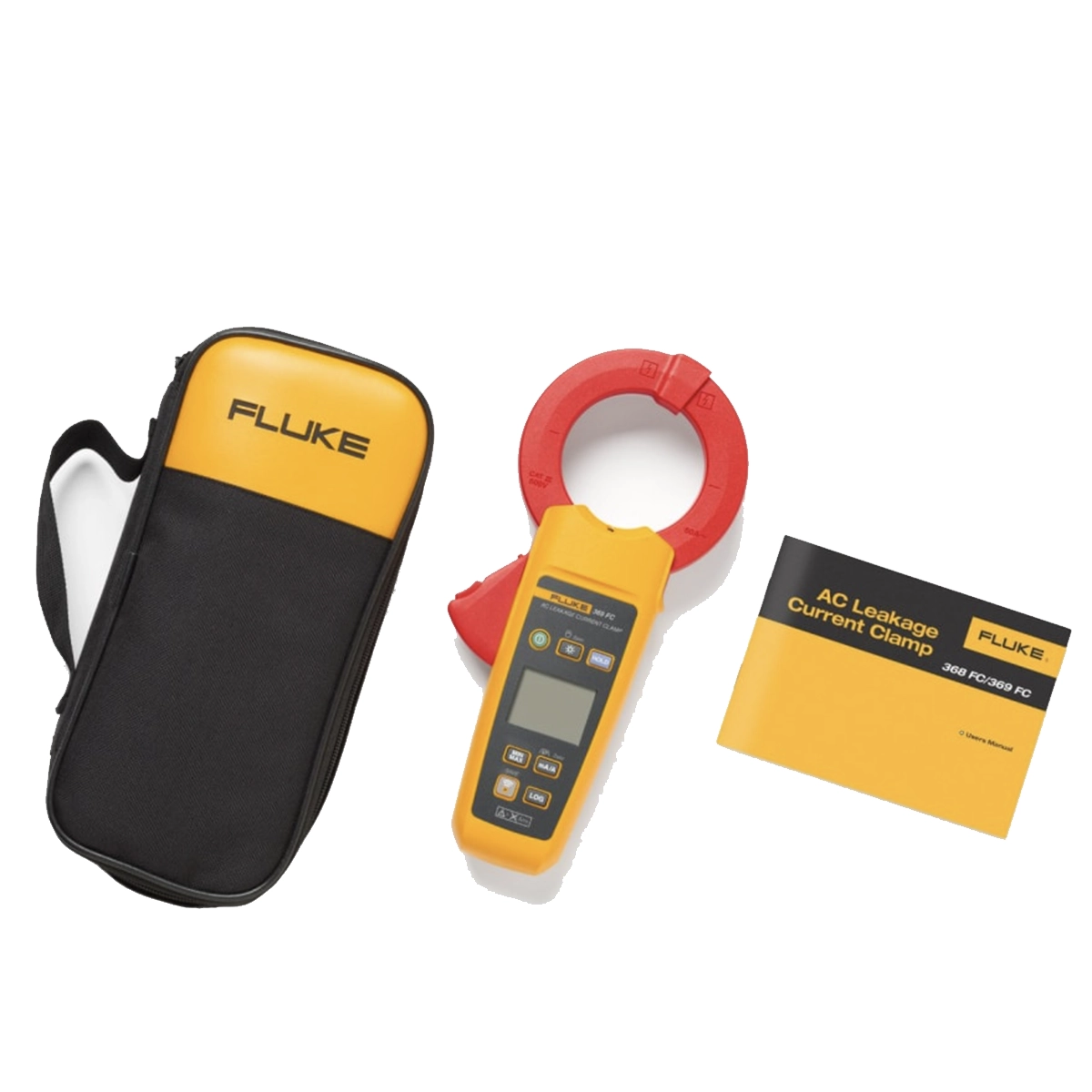

- Fluke 369 FC Wireless Leakage Current Clamp Meter
- Soft carrying case
- User manual
- Two AA batteries
