Fluke A3004 FC Clamp Meter
$461.00
The Fluke A3004 FC Wireless 4–20 mA DC Clamp Meter is designed for accurate loop current measurements in industrial process control systems. It wirelessly transmits readings to Fluke Connect–enabled devices for efficient monitoring and analysis.
Overview Fluke A3004 FC Clamp Meter

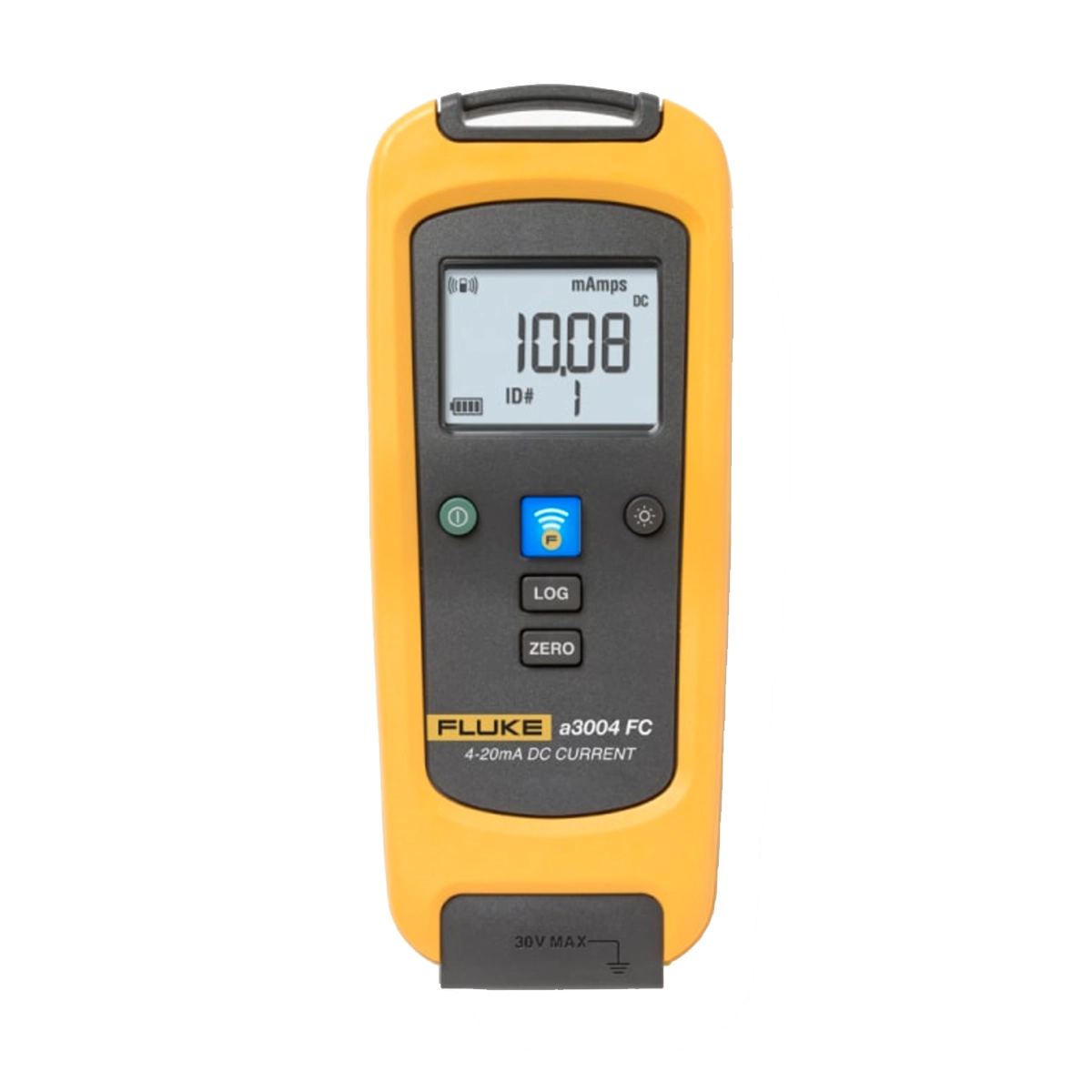

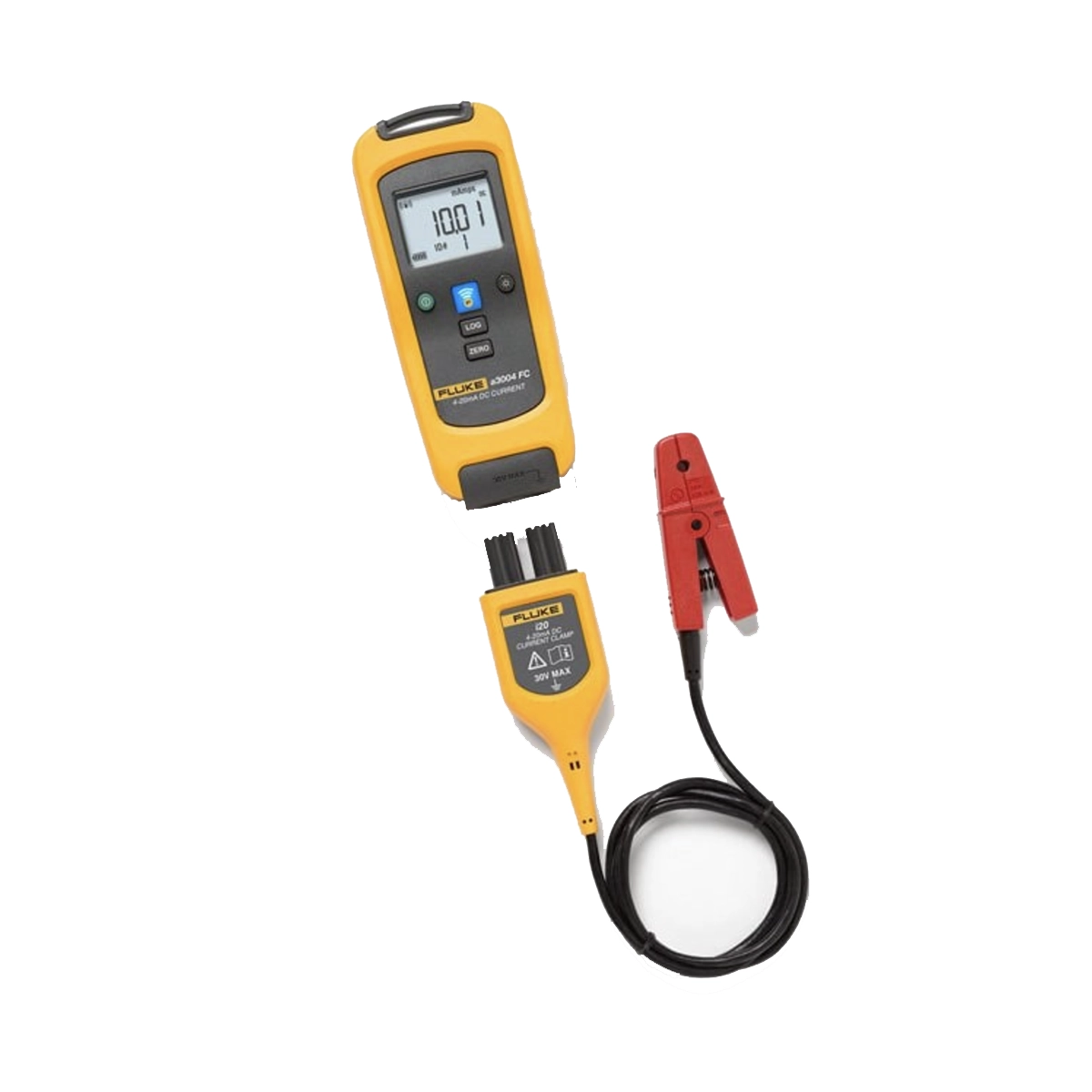

The Fluke A3004 FC Clamp Meter is a specialized 4–20 mA DC current clamp built for technicians working with process control, instrumentation, and automation systems. Instead of functioning as a standalone display meter, the A3004 FC wirelessly transmits measurement data to compatible Fluke Connect master devices, smartphones, or PCs.
As part of the Fluke Connect ecosystem, this clamp meter allows you to record, log, and analyze loop current data safely and efficiently—without breaking the control loop or interrupting operations.
Features and Performance
- Designed specifically for 4–20 mA DC loop current measurements
- Wireless transmission of readings to Fluke Connect–enabled devices
- Measurement ranges from 0.05 mA to 99.9 mA DC
- High accuracy for process control diagnostics
- Built-in data logging with capacity up to 65,000 readings
- Adjustable logging interval (minimum 1 second)
- Backlit LCD display for visibility in low-light environments
- IP42 rating for industrial indoor applications
- Compact jaw design for easy access to control wiring
- Long battery life up to 45 hours using two AA batteries
Why You Should Buy it
The Fluke A3004 FC is an ideal tool for technicians and engineers working in industrial automation, instrumentation, and maintenance. Wireless data transmission improves safety and productivity, while accurate 4–20 mA measurements help diagnose sensors, transmitters, and control loops without system shutdowns. It is a reliable solution for modern process environments where precision and efficiency matter.
| Specification | Details |
|---|---|
| Measurement Type | DC Loop Current (4–20 mA) |
| Measurement Range | 0.05 mA to 99.9 mA DC |
| Resolution | 0.01 mA / 0.1 mA |
| Accuracy | ±0.2 % to ±1.0 % |
| Display | 3½-digit LCD with backlight |
| Data Logging | Up to 65,000 readings |
| Logging Interval | Minimum 1 second |
| Wireless Frequency | 2.4 GHz ISM Band |
| Wireless Range | Up to 20 m (open air) |
| Jaw Opening | 4.5 mm |
| IP Rating | IP42 |
| Battery Type | 2 × AA |
| Battery Life | Up to 45 hours |
| Operating Temperature | -10 °C to +50 °C |
| Dimensions (H × W × D) | 16.5 × 6.35 × 1.4 cm |
| Weight | 0.8 lb (0.299 kg) |
| Certifications | CE, FCC, cCSAus |
| ECCN | 3A992 |
| Warranty | 3 Years |

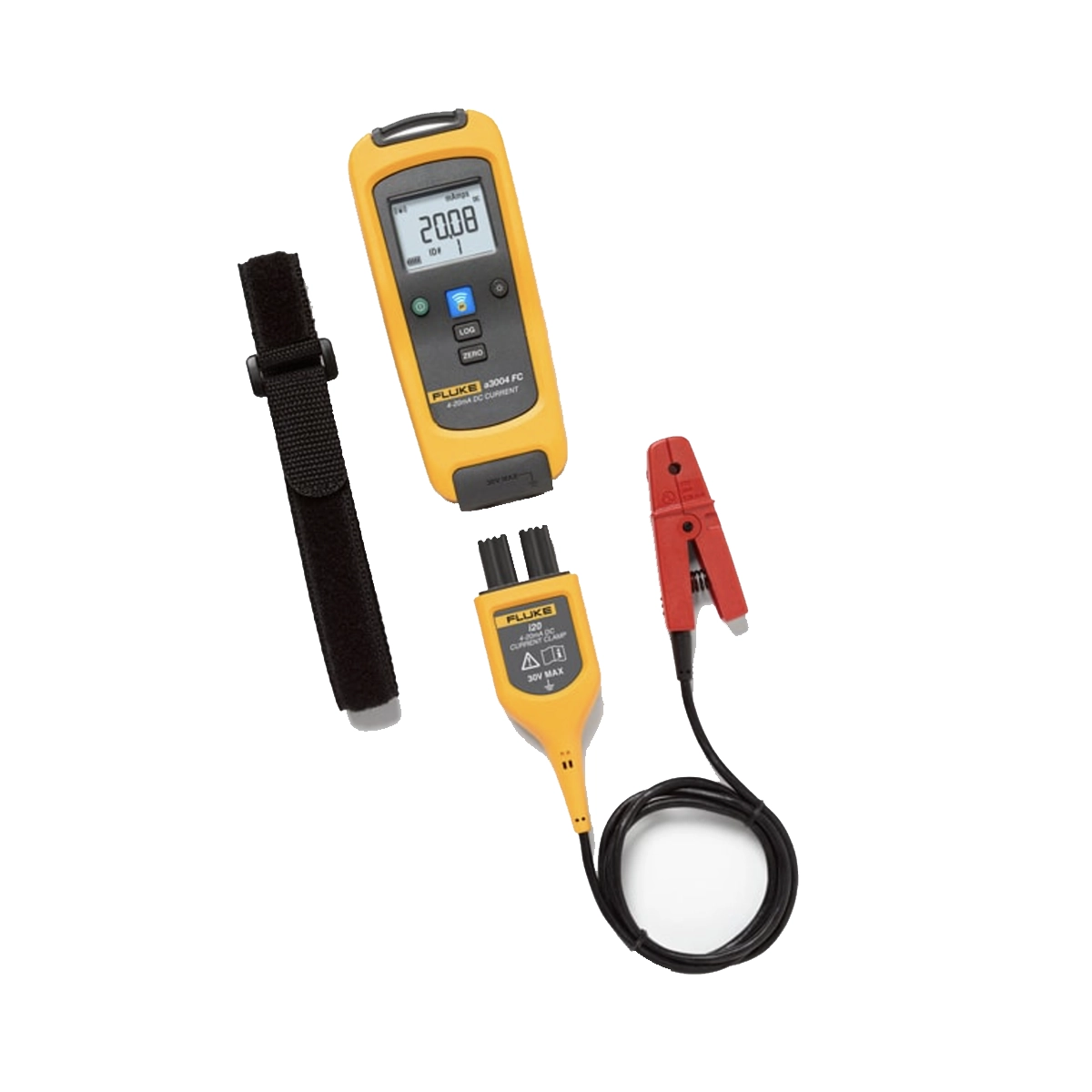

- Fluke A3004 FC Wireless 4–20 mA DC Current Clamp
- Two AA batteries (installed)
- Magnetic hanging strap and information pack
